● High efficiency machining

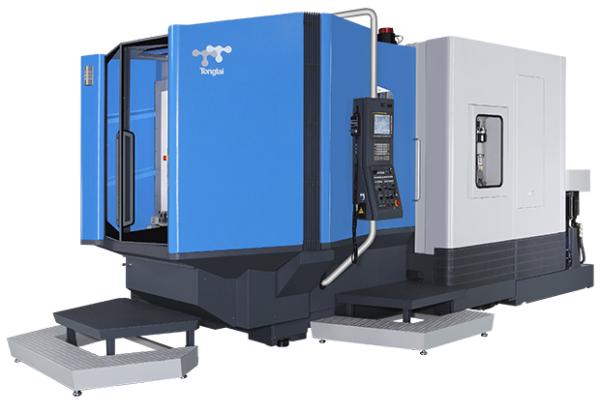

HB-500II has excellent appearance and friendly human-machine interface. It improves machining efficiency by decreasing non-cutting time and becomes a high cost-performance rate machine.
● High torque & power spindle
10,000 rpm build-in spindle is equipped with high power 25/30 kW and high torque 420 Nm as standard. This spindle is suitable for machining materials of aluminum alloy, cast iron and steel. HB-500II is applied mainly in the industries of automobile, construction machinery, agriculture machinery and general parts.
• Machine bed adopts 3-point support structure
• Minimized machine width design
• Automatic pallet changer system is available as an option
• High accuracy, high rigidity and high power machine
• SH series is developed for high efficiency machining, especially in aluminum parts machining
● High precision pallets use positioning gear disc to ensure precise positioning during pallet change.
● Y-axis twin spiral ballscrew can enhance slide movement rigidity and cutting capacity.
● Spindle Bearing Protection uses maze type mechanical seal and air-blowing to prohibit coolant entry.
● High precision pallets use positioning gear discs to ensure precise positioning during pallet change.
● T-type structure high rigidity machine bed ensures long term precision and stability during machining.
● Machine speed is substantially upgraded during cutting and non-cutting activity. It shortens the machining cycle time.

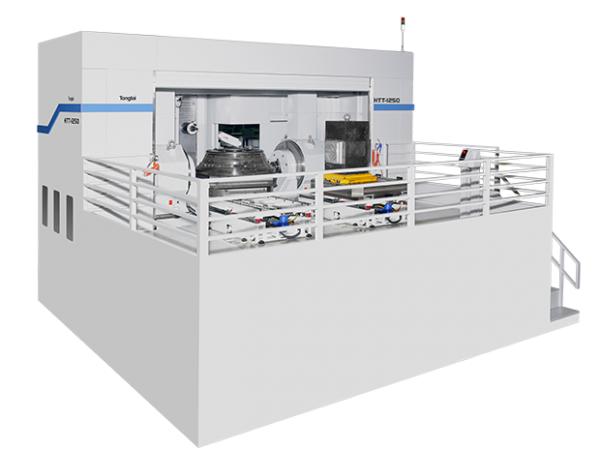

• High torque 5-axis machining performances.

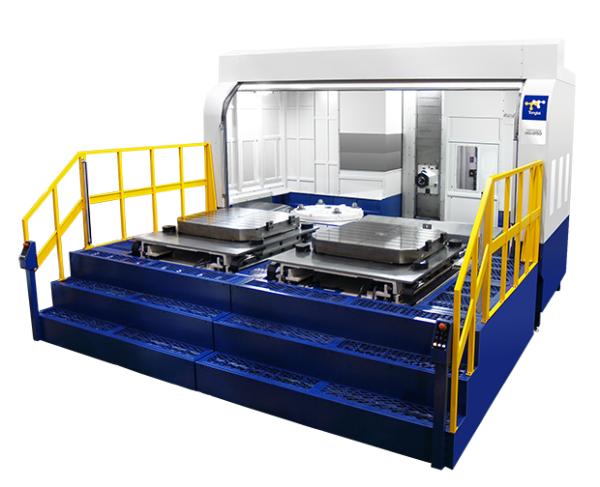

• Shuttle type automatic pallet changer (APC) design.
• High structure rigidity
• Box-way with air-floating
Gear box type high torque spindle (1,300 Nm).
• Especially fit for engine casing and turbine blade machining in the aerospace industry.
● Machine speed is substantially upgraded during cutting and non-cutting activity. It shortens the machining cycle time.
● Uses large diameter spindle with built-in motor provides high rigidity and vibration damping capacities for high machining precision.
● Automatic Tool Changer (ATC) is cam type with dual tool arms. It ensures the operation stably in heavy tool changing.
● Machine speed is substantially upgraded during cutting and non-cutting activity. It shortens the machining cycle time.
● Uses large diameter spindle with built-in motor provides high rigidity and vibration damping capacities for high machining precision.
● Automatic Tool Changer (ATC) is cam type with dual tool arms. It ensures the operation stably in heavy tool changing tool changing.
● Machine design allows chip conveyor adjustment for either rear or side exit suitable for any production line design
● High precision NC Index includes eight oil tube joiners and one air pressure check/control available for hydraulic jigs
● Machine adapts high torque motor. It can completely display the advantage of spindle and obtain high efficiency
● Flexible modular design fits customers' requirements
● Horizontal spindle & moving column design for excellent chip flow
● Rapid traverse Rapid traverse: 70/80/80 m/minAcceleration: 0.8/1.0/1.5 G
● Tool changing (C to C)： 3.5 sec
